PAPER NAPKIN MAKING MACHINE-HR-119 A, B

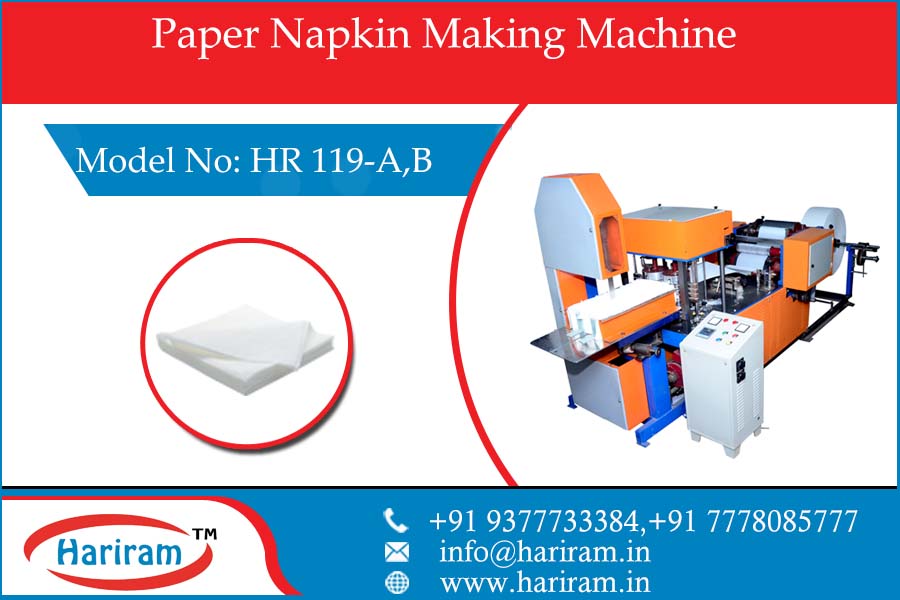

 HR-119 A, B PAPER NAPKIN MAKING MACHINE

  • DIMENTION – L = 13FT, W = 5FT, H = 6FT
  • FLOOR AREA – 13FT * 5FT = 65 SQ.FT
  • WORKING SPACE –  700 SQ.FT

TECHNICAL SPECIFICATION

  • PAPER WIDTH: 22CM, 24CM, 27CM, 30CM, 33CM AND 40 CM
  • PRINTING UNIT:  SINGLE ANALOX PRINTING OR DOUBLE ANALOX PRINTING
  • EMBOSING UNIT:SINGLE EMBOSING OR DOUBLE EMBOSING
  • EMBOSING DESIGN: AS PER REQUIREMENT
  • FOLDING SIZE: 1/4
  • PAPER ROLL DIAMETER: 1200 MM (47”)
  • PAPER ROLL CORE INNER DIAMETER: 76 MM (3”)
  • PAPER WEIGHT: 17GSM TO 24GSM
  • PRODUCTION RATE : 350 TO 500 PCS PER MINUTE (SPEED WILL BE VARRY ACCORDING TO QUALITY & SIZE OF PAPER
  • POWER REQUIRED: AC 220 VOLTS, 50 Hz
  • TRANSMISSION: TIMING BELTS
  • CONTROLLING SYSTEM: FREQUENCY DRIVE
  • WEIGHT OF MACHINE: 2000 KG APPROX
  • POWER CONSUMPTION WITH HEATER – 2.5 UNITS / HR



ACCESSORIES

SR NO

ITEM DESCRIPTION

QTY

UNIT

1

BLADE

1

NOS

2

SCREW DRIVER SET

1

NOS

3

FIX PANA SET

1

NOS

4

GRINDING WHEEL

2

NOS

5

FINGER

2

NOS

6

HAMMER

1

NOS

7

TESTER

1

NOS

8

PLIER

1

NOS

9

WIRE TAPE

1

NOS

10

OIL CANE

1

NOS

11

L & KEY SET

1

NOS

12

TOOL KIT BOX

1

NOS

WARRANTY

  • INDUCTION MOTOR – 1 YEAR

NOTE: WE ARE PROVIDING ONLY REPAIR WARRANTY
