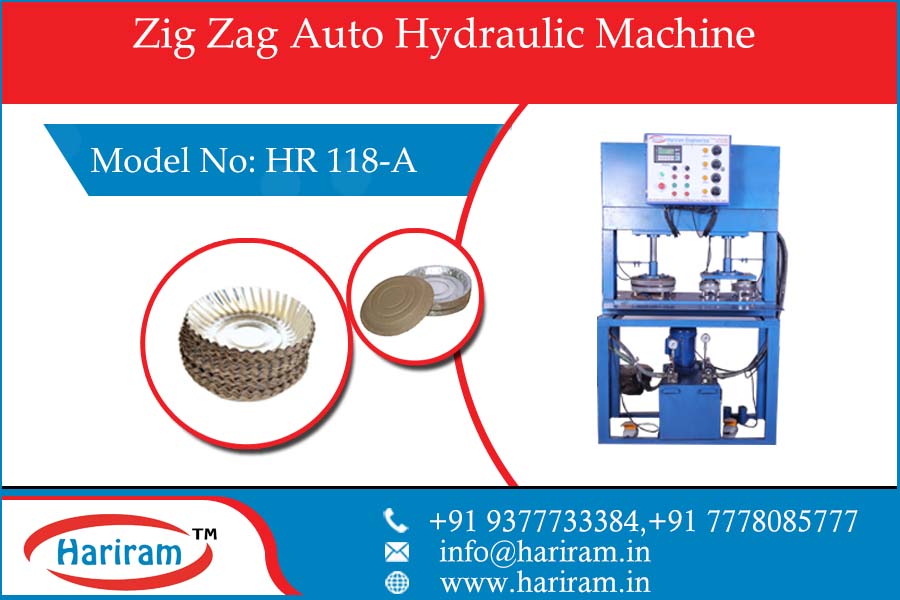

HR 118-A ZIG ZAG AUTO HYDRAULIC MACHINE

• DIMENTION – L = 4FT, W = 3FT, H = 6FT
• FLOOR AREA – 6FT * 5FT = 30 SQ.FT
• WORKING SPACE – 450 SQ.FT

TECHNICAL SPECIFICATION

• DIE TYPE
  • Thali
    • Regular Thali Die
    • Partition Thali Die
    • Buffet Thali Die
  • Paper Plate
    • Wrinkle Paper Plate Die
• DIE SIZE: PAPER PLATE – 6” TO 14”, THALI – 10” TO 16”
• PAPER MATERIAL: SILVER CRAFT – 80GSM TO 200 GSM, DUPLEX – 100GSM TO 300GSM
• TOTAL 900 GSM / THALI DIE AND 1200 GSM / PAPER PLATE DIE

• MAX. STROKES PER MINUTE: PAPER PLATE – 5, THALI – 6
• PRODUCTION RATE (DEPENDING ON PAPER SIZE & GSM): PAPER PLATE – 6000PCS PER HOUR (BOTH SIDE)

                                                                                                            THALI –1080PCS PER HOUR (BOTH SIDE)

• POWER SOURCE: SINGLE PHASE (220V – 50Hz) OR THREE PHASE (440V – 50Hz)
• ELECTRIC MOTOR: 3 HP FLANGE MOUNTING – 1440 RPM (SINGLE PHASE OR THREE PHASE)
• WEIGHT OF MACHINE: 350 KG APPROX
• POWER CONSUMPTION WITH HEATER – 4 UNITS / HR
• OIL TANK CAPACITY: 60 LTRS.
• WE ARE NOT PROVIDING HYDRAULIC OIL WITH THE MACHINE.

ACCESSORIES

• TEFLONE SHEET – 1 NOS (12”*12”)
• ADJUSTABLE WRENCH – 1 NOS
• FIX PANA SET – 1 NOS
• L&KEY PANA SET – 1 NOS
• SCREW DRIVER ( T803) – 1 NOS
• TESTER REGULAR – 1 NOS
• 15/21 FIX PANA – 1 NOS
• 1/4, 3/16, 7/32 L&KEY PANA – 1 NOS FOR EACH
• CONNECTORS – 8 NOS
• SUPPORTED RUBBER – 1 NOS
• DIE CLAMPS – 8 NOS
• HEATER SET OF FREE DIES– 1 SET FOR EACH
• FREE DIES – THALI DIE – 13” OR 14”- 1 NOS

                      PAPER PLATE DIE – 6” – 1 NOS & 7“– 1 NOS

WARRANTY

NOTE: WE ARE PROVIDING ONLY REPAIR WARRANTY
